Regulatory Applications
The WWC Series Weathercap is designed for installation on open-ended vent lines and safety relief valve discharge piping in applications subject to 40 CFR §65.114.

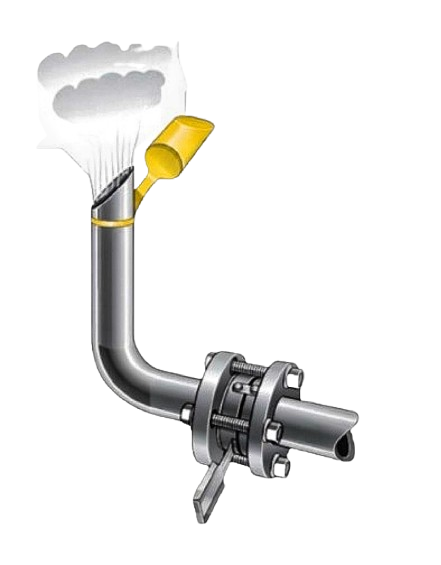

When properly installed on a clean, smooth pipe end of the correct outside diameter, the Weathercap functions as a resilient cap that seals the open ended line during normal operation while automatically opening when process flow occurs through the vent line or relief valve.
In addition to environmental protection, the Weathercap:
• Provides a physical cap for open-ended lines during normal operation.
• Provides a resilient seal over the smooth open ended line under normal operating conditions.
• Automatically opens during relief events or process venting without requiring operator intervention.
• Provides a clear visual indication that a relief valve has actuated, or that fugitive emissions are being released.
• Manually resealable following discharge when properly installed and undamaged.
The owner or operator remains responsible for determining whether the complete installation satisfies all applicable regulatory requirements, including 40 CFR §65.114 and any other federal, state, or local regulations.
Key Benefits
• Helps protect vent outlets from rain, snow, ice, insects, birds, rodents, and environmental debris
• Supports applications requiring a cap on open-ended lines under 40 CFR §65.114
• Automatically opens during relief events without restricting flow
• Provides immediate visual indication of pressure relief valve actuation
• Helps reduce nuisance contamination entering vent piping
• Flexible platinum-cured silicone construction resists cracking, corrosion, and UV degradation
• Integrated retention lanyard keeps the Weathercap attached after valve actuation, reducing the chance of loss and enabling reuse following inspection
• High-visibility industrial yellow improves equipment identification and post-actuation inspection
• Manufactured in the USA
Features
Premium platinum-cured silicone construction
High-visibility industrial yellow
UV, ozone, and weather resistant
Temperature range: -65°F to 450°F (-54°C to 232°C)
Compatible with standard Schedule 40 and Schedule 80 pipe
Compatible with carbon steel, stainless steel, galvanized, plastic and painted pipe
Integrated retention lanyard
Designed for long-term outdoor service
Not intended for vacuum applications
Available Sizes
Weathercaps are available for the following standard Nominal Pipe Sizes (NPS):
1/2" NPS
3/4" NPS
1" NPS
1-1/4" NPS
1-1/2" NPS
2" NPS
2-1/2" NPS
3" NPS
4" NPS
5" NPS
6" NPS

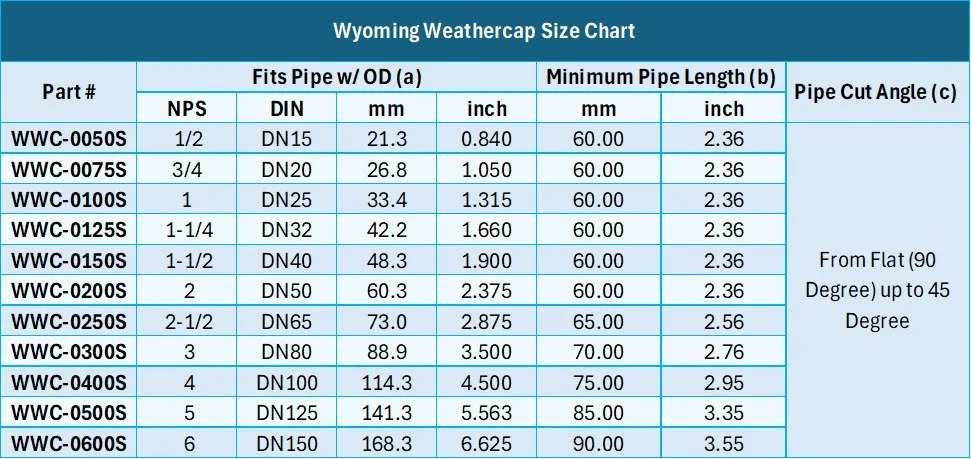

Sizing Information
Weathercaps are sized according to Nominal Pipe Size (NPS). Because the actual outside diameter (OD) differs from the nominal pipe size, always select the Weathercap based on the pipe's measured outside diameter. Refer to the sizing table below to verify the correct Weathercap before ordering.
